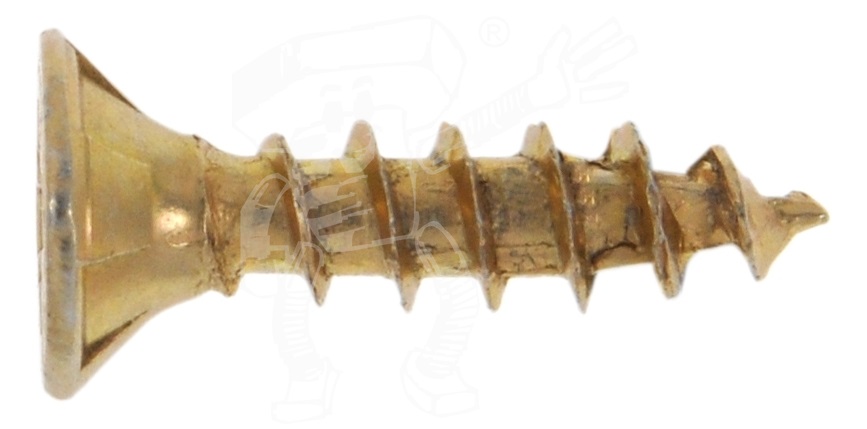

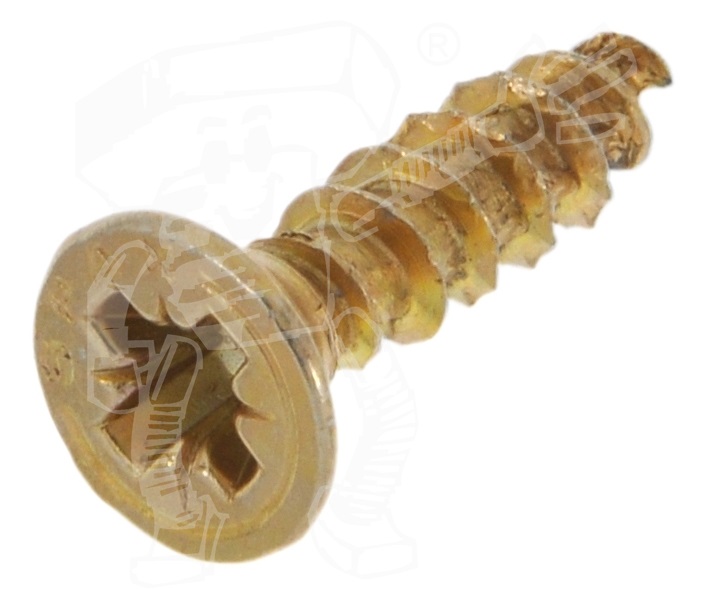

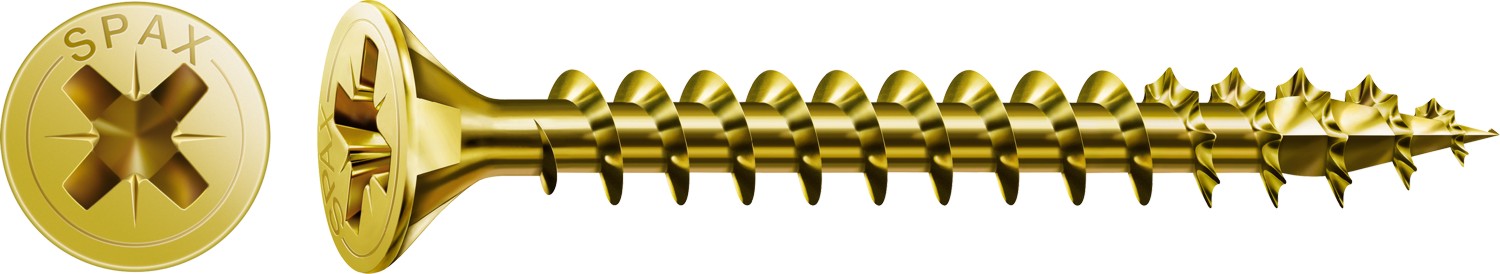

SPAX Universalschrauben, Senkkopf, Vollgewinde mit 4CUT-Spitze, Pozidriv (PZ) , normale Spitze unter Durchmesser 3,5 mm
Artikelgruppe 3041
YELLOX (Stahl gelb verzinkt)
ROHS-Konform: Ja
REACH-Konform: Ja
Art. 82084
Alternativen
Produktinformationen
Kopfform
Senkkopf
Antrieb
Kreuzschlitz (PZ)
Gewindeform
Holzgewinde
Zulassung
SKH (alle)SKH (einzeln)SKH (einzeln)
Stahl, nachträglich gelb verzinkt (Korrosionsschutz), ohne Festigkeitsangabe
Werkstoff
YELLOX (Stahl gelb verzinkt)
| Lade... |
Legende:

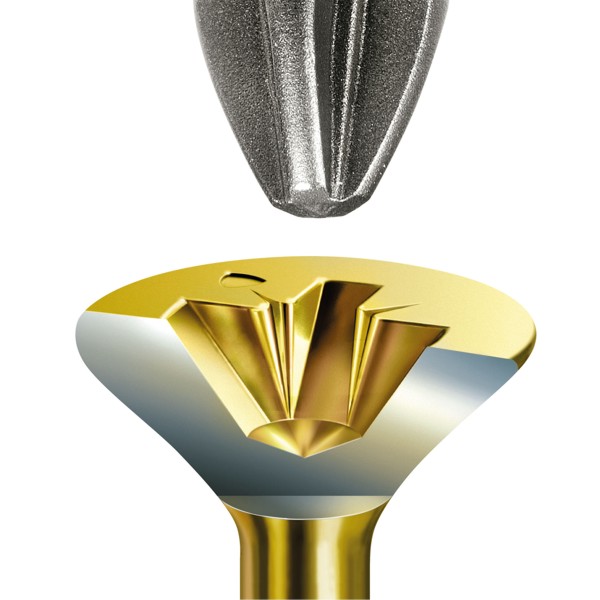

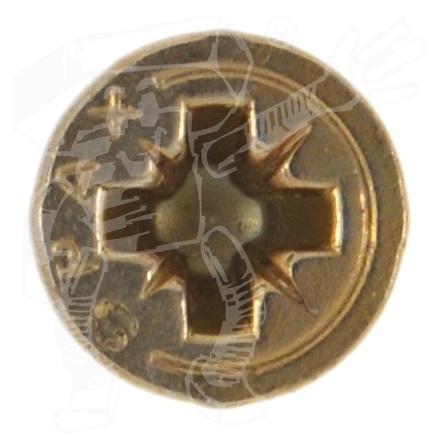

Antrieb-PZ
= Antrieb-Pozidriv-Kreuzschlitz (PZ)
Maße (d1)
= Durchmesser Gewinde (Nennmaß)
*
= Abweichung: Gewinde geht nicht ganz bis zum Kopf
| Maße (d1) |
2,5 |
3 |
3,5 |
4 |
4,5 |
5 |
6 |
| dk |
5,1 |
6,0 |
7,0 |
8,0 |
8,8 |
9,7 |
11,6 |
| Antrieb-PZ |
PZ 1 |
PZ 1 |
PZ 2 |
PZ 2 |
PZ 2 |
PZ 2 |
PZ 3 |
Angaben in mm, soweit nicht anders angegeben, alle Angaben ohne Gewähr
| Lade... |
|
Artikel-Nr.
|
Abmessung
|
Menge
|
Kleinpaket
|
Standardpaket
|
Großpaket
|
|
|
|
| 3041-003 | 2 x 10 PZ1 | | | | | |  | 1.000 | St. | 23,20 € |  | 5.000 | St. | 111,27 € |  |  |  |
| 3041-005 | 2 x 12 PZ1 | | | | | | | 1.000 | St. | 21,06 € | | 5.000 | St. | 104,13 € | | | |
| 3041-007 | 2 x 16 PZ1 | | | | | | | 1.000 | St. | 22,97 € | | 5.000 | St. | 113,05 € | | | |
| 3041-009 | 2,5 x 10 PZ1 | | | | | | | 1.000 | St. | 11,30 € | | 5.000 | St. | 53,55 € | | | |
| 3041-011 | 2,5 x 12 PZ1 | | | | | | | 1.000 | St. | 11,54 € | | 5.000 | St. | 54,15 € | | | |
| 3041-013 | 2,5 x 16 PZ1 | | | | | | | 1.000 | St. | 11,42 € | | 5.000 | St. | 55,33 € | | | |
| 3041-015 | 2,5 x 20 PZ1 | | | | | | | 1.000 | St. | 11,30 € | | 5.000 | St. | 55,93 € | | | |
| 3041-017 | 2,5 x 25 PZ1 | | | | | | | 1.000 | St. | 14,16 € | | 5.000 | St. | 69,62 € | | | |
| 3041-019 | 3 x 10 PZ1 | | | | | | | 1.000 | St. | 10,00 € | | 5.000 | St. | 46,41 € | | | |
| 3041-159 | 3 x 12 PZ1 | | | | | | | 200 | St. | 2,26 € | | 1.000 | St. | 11,19 € | | | |
| 3041-021 | 3 x 12 PZ1 | | | | | | | 1.000 | St. | 11,30 € | | 5.000 | St. | 53,55 € | | | |
| 3041-161 | 3 x 16 PZ1 | | | | | | | 200 | St. | 2,28 € | | 1.000 | St. | 11,30 € | | | |
| 3041-023 | 3 x 16 PZ1 | | | | | | | 1.000 | St. | 10,59 € | | 5.000 | St. | 52,36 € | | | |
| 3041-163 | 3 x 20 PZ1 | | | | | | | 200 | St. | 2,50 € | | 1.000 | St. | 12,38 € | | | |
| 3041-025 | 3 x 20 PZ1 | | | | | | | 1.000 | St. | 11,30 € | | 5.000 | St. | 55,93 € | | | |
| 3041-165 | 3 x 25 PZ1 | | | | | | | 200 | St. | 2,69 € | | 1.000 | St. | 13,33 € | | | |
| 3041-027 | 3 x 25 PZ1 | | | | | | | 1.000 | St. | 12,02 € | | 5.000 | St. | 58,90 € | | | |
| 3041-167 | 3 x 30 PZ1 | | | | | | | 200 | St. | 4,47 € | | 1.000 | St. | 20,71 € | | | |
| 3041-029 | 3 x 30 PZ1 | | | | | | | 1.000 | St. | 15,71 € | | 5.000 | St. | 77,35 € | | | |
| 3041-169 | 3 x 35 PZ1 | | | | | | | 200 | St. | 3,83 € | | 1.000 | St. | 18,92 € | | | |
| 3041-031 | 3 x 35 PZ1 | | | | | | | 1.000 | St. | 18,44 € | | 5.000 | St. | 91,04 € | | | |
| 3041-171 | 3 x 40 PZ1 | | | | | | | 200 | St. | 6,66 € | | 1.000 | St. | 31,42 € | | | |
| 3041-033 | 3 x 40 PZ1 | | | | | | | 1.000 | St. | 24,87 € | | 5.000 | St. | 122,57 € | | | |
| 3041-035 | 3 x 45 PZ1 * | | | | | | | 1.000 | St. | 33,56 € | | 5.000 | St. | 164,82 € | | | |
| 3041-173 | 3,5 x 12 PZ2 | | | | | | | 200 | St. | 3,31 € | | 1.000 | St. | 15,83 € | | | |
| 3041-037 | 3,5 x 12 PZ2 | | | | | | | 1.000 | St. | 12,02 € | | 5.000 | St. | 58,90 € | | | |
| 3041-039 | 3,5 x 15 PZ2 | | | | | | | 1.000 | St. | 10,47 € | | 5.000 | St. | 51,17 € | | | |
| 3041-175 | 3,5 x 16 PZ2 | | | | | | | 200 | St. | 3,45 € | | 1.000 | St. | 13,92 € | | | |
| 3041-041 | 3,5 x 16 PZ2 | | | | | | | 1.000 | St. | 12,26 € | | 5.000 | St. | 60,10 € | | | |
| 3041-177 | 3,5 x 20 PZ2 | | | | | | | 200 | St. | 3,81 € | | 1.000 | St. | 17,37 € | | | |
| 3041-043 | 3,5 x 20 PZ2 | | | | | | | 1.000 | St. | 16,42 € | | 5.000 | St. | 79,14 € | | | |
| 3041-179 | 3,5 x 25 PZ2 | | | | | | | 200 | St. | 3,36 € | | 1.000 | St. | 16,54 € | | | |
| 3041-045 | 3,5 x 25 PZ2 | | | | | | | 1.000 | St. | 14,87 € | | 5.000 | St. | 73,78 € | | | |
| 3041-181 | 3,5 x 30 PZ2 | | | | | | | 200 | St. | 3,69 € | | 1.000 | St. | 18,21 € | | | |
| 3041-047 | 3,5 x 30 PZ2 | | | | | | | 1.000 | St. | 16,07 € | | 5.000 | St. | 79,14 € | | | |
| 3041-183 | 3,5 x 35 PZ2 | | | | | | | 200 | St. | 4,52 € | | 1.000 | St. | 22,25 € | | | |
| 3041-049 | 3,5 x 35 PZ2 | | | | | | | 1.000 | St. | 19,52 € | | 5.000 | St. | 96,39 € | | | |
| 3041-185 | 3,5 x 40 PZ2 | | | | | | | 200 | St. | 5,14 € | | 1.000 | St. | 25,35 € | | | |
| 3041-051 | 3,5 x 40 PZ2 | | | | | | | 1.000 | St. | 22,97 € | | 5.000 | St. | 113,05 € | | | |
| 3041-187 | 3,5 x 45 PZ2 | | | | | | | 200 | St. | 7,90 € | | 1.000 | St. | 38,91 € | | | |
| 3041-053 | 3,5 x 45 PZ2 | | | | | | | 1.000 | St. | 33,08 € | | 5.000 | St. | 163,03 € | | | |
| 3041-189 | 3,5 x 50 PZ2 * | | | | | | | 200 | St. | 8,43 € | | 1.000 | St. | 41,53 € | | | |
| 3041-055 | 3,5 x 50 PZ2 * | | | | | | | 500 | St. | 18,74 € | | 2.500 | St. | 92,52 € | | | |
| 3041-057 | 4 x 12 PZ2 | | | 200 | St. | 3,09 € | | 1.000 | St. | 15,47 € | | 5.000 | St. | 72,59 € | | | |
| 3041-059 | 4 x 15 PZ2 | | | | | | | 1.000 | St. | 14,76 € | | 5.000 | St. | 72,59 € | | | |
| 3041-191 | 4 x 16 PZ2 | | | | | | | 200 | St. | 3,28 € | | 1.000 | St. | 16,18 € | | | |
| 3041-061 | 4 x 16 PZ2 | | | | | | | 1.000 | St. | 17,73 € | | 5.000 | St. | 85,68 € | | | |
| 3041-193 | 4 x 20 PZ2 | | | | | | | 200 | St. | 4,31 € | | 1.000 | St. | 19,75 € | | | |
| 3041-063 | 4 x 20 PZ2 | | | | | | | 1.000 | St. | 15,71 € | | 5.000 | St. | 77,35 € | | | |
| 3041-195 | 4 x 25 PZ2 | | | | | | | 200 | St. | 4,78 € | | 1.000 | St. | 23,09 € | | | |
| 3041-065 | 4 x 25 PZ2 | | | | | | | 1.000 | St. | 16,90 € | | 5.000 | St. | 83,30 € | | | |
| 3041-197 | 4 x 30 PZ2 | | | | | | | 200 | St. | 5,05 € | | 1.000 | St. | 24,40 € | | | |
| 3041-067 | 4 x 30 PZ2 | | | | | | | 1.000 | St. | 19,04 € | | 5.000 | St. | 94,01 € | | | |
| 3041-199 | 4 x 35 PZ2 | | | | | | | 200 | St. | 5,05 € | | 1.000 | St. | 24,87 € | | | |
| 3041-069 | 4 x 35 PZ2 | | | | | | | 1.000 | St. | 22,13 € | | 5.000 | St. | 108,89 € | | | |
| 3041-201 | 4 x 40 PZ2 | | | | | | | 200 | St. | 7,02 € | | 1.000 | St. | 34,03 € | | | |
| 3041-071 | 4 x 40 PZ2 | | | | | | | 1.000 | St. | 26,89 € | | 5.000 | St. | 132,69 € | | | |
| 3041-203 | 4 x 45 PZ2 | | | | | | | 200 | St. | 6,74 € | | 1.000 | St. | 33,08 € | | | |
| 3041-073 | 4 x 45 PZ2 | | | | | | | 500 | St. | 14,58 € | | 2.500 | St. | 71,70 € | | | |
| 3041-205 | 4 x 50 PZ2 | | | | | | | 200 | St. | 7,19 € | | 1.000 | St. | 35,46 € | | | |
| 3041-075 | 4 x 50 PZ2 | | | | | | | 500 | St. | 16,66 € | | 2.500 | St. | 81,81 € | | | |
| 3041-077 | 4 x 55 PZ2 | | | | | | | 500 | St. | 26,48 € | | 2.500 | St. | 130,31 € | | | |
| 3041-207 | 4 x 60 PZ2 * | | | | | | | 100 | St. | 7,26 € | | 500 | St. | 35,64 € | | | |
| 3041-079 | 4 x 60 PZ2 * | | | | | | | 500 | St. | 27,13 € | | 2.500 | St. | 133,88 € | | | |
| 3041-209 | 4 x 70 PZ2 * | | | | | | | 100 | St. | 9,92 € | | 500 | St. | 48,91 € | | | |
| 3041-081 | 4 x 70 PZ2 * | | | | | | | 500 | St. | 43,08 € | | 2.500 | St. | 212,41 € | | | |
| 3041-083 | 4 x 80 PZ2 * | | | | | | | 200 | St. | 19,73 € | | 1.000 | St. | 97,22 € | | | |
| 3041-211 | 4,5 x 16 PZ2 | | | | | | | 200 | St. | 5,66 € | | 1.000 | St. | 26,66 € | | | |
| 3041-085 | 4,5 x 16 PZ2 | | | | | | | 1.000 | St. | 17,85 € | | 5.000 | St. | 88,06 € | | | |
| 3041-213 | 4,5 x 20 PZ2 | | | | | | | 200 | St. | 5,85 € | | 1.000 | St. | 28,92 € | | | |
| 3041-087 | 4,5 x 20 PZ2 | | | | | | | 1.000 | St. | 20,71 € | | 5.000 | St. | 102,34 € | | | |
| 3041-215 | 4,5 x 25 PZ2 | | | | | | | 200 | St. | 6,47 € | | 1.000 | St. | 31,42 € | | | |
| 3041-089 | 4,5 x 25 PZ2 | | | | | | | 1.000 | St. | 23,44 € | | 5.000 | St. | 115,43 € | | | |
| 3041-217 | 4,5 x 30 PZ2 | | | | | | | 200 | St. | 6,88 € | | 1.000 | St. | 33,91 € | | | |
| 3041-091 | 4,5 x 30 PZ2 | | | | | | | 1.000 | St. | 26,89 € | | 5.000 | St. | 132,69 € | | | |
| 3041-219 | 4,5 x 35 PZ2 | | | | | | | 200 | St. | 7,28 € | | 1.000 | St. | 35,22 € | | | |
| 3041-093 | 4,5 x 35 PZ2 | | | | | | | 500 | St. | 14,58 € | | 2.500 | St. | 71,70 € | | | |
| 3041-221 | 4,5 x 40 PZ2 | | | | | | | 200 | St. | 7,00 € | | 1.000 | St. | 34,51 € | | | |
| 3041-095 | 4,5 x 40 PZ2 | | | | | | | 500 | St. | 15,77 € | | 2.500 | St. | 77,65 € | | | |
| 3041-223 | 4,5 x 45 PZ2 | | | | | | | 200 | St. | 10,81 € | | 1.000 | St. | 52,72 € | | | |
| 3041-097 | 4,5 x 45 PZ2 | | | | | | | 500 | St. | 20,53 € | | 2.500 | St. | 101,15 € | | | |
| 3041-225 | 4,5 x 50 PZ2 | | | | | | | 200 | St. | 11,04 € | | 1.000 | St. | 53,07 € | | | |
| 3041-099 | 4,5 x 50 PZ2 | | | | | | | 500 | St. | 21,18 € | | 2.500 | St. | 104,13 € | | | |
| 3041-227 | 4,5 x 60 PZ2 | | | | | | | 100 | St. | 7,03 € | | 500 | St. | 34,51 € | | | |
| 3041-101 | 4,5 x 60 PZ2 | | | | | | | 500 | St. | 26,54 € | | 2.500 | St. | 130,90 € | | | |
| 3041-229 | 4,5 x 70 PZ2 * | | | | | | | 100 | St. | 9,35 € | | 500 | St. | 46,11 € | | | |
| 3041-103 | 4,5 x 70 PZ2 * | | | | | | | 500 | St. | 43,61 € | | 2.500 | St. | 214,79 € | | | |
| 3041-231 | 4,5 x 80 PZ2 * | | | | | | | 100 | St. | 10,77 € | | 500 | St. | 53,07 € | | | |
| 3041-105 | 4,5 x 80 PZ2 * | | | | | | | 200 | St. | 19,85 € | | 1.000 | St. | 97,82 € | | | |
| 3041-233 | 5 x 20 PZ2 | | | | | | | 200 | St. | 7,69 € | | 1.000 | St. | 37,96 € | | | |
| 3041-107 | 5 x 20 PZ2 | | | | | | | 1.000 | St. | 28,20 € | | 5.000 | St. | 139,23 € | | | |
| 3041-235 | 5 x 25 PZ2 | | | | | | | 200 | St. | 6,85 € | | 1.000 | St. | 33,80 € | | | |
| 3041-109 | 5 x 25 PZ2 | | | | | | | 1.000 | St. | 28,08 € | | 5.000 | St. | 138,63 € | | | |
| 3041-237 | 5 x 30 PZ2 | | | | | | | 200 | St. | 8,90 € | | 1.000 | St. | 44,03 € | | | |
| 3041-111 | 5 x 30 PZ2 | | | | | | | 500 | St. | 19,40 € | | 2.500 | St. | 95,20 € | | | |
| 3041-239 | 5 x 35 PZ2 | | | | | | | 200 | St. | 9,97 € | | 1.000 | St. | 49,27 € | | | |
| 3041-113 | 5 x 35 PZ2 | | | | | | | 500 | St. | 18,92 € | | 2.500 | St. | 93,42 € | | | |
| 3041-241 | 5 x 40 PZ2 | | | | | | | 200 | St. | 9,28 € | | 1.000 | St. | 45,70 € | | | |
| 3041-115 | 5 x 40 PZ2 | | | | | | | 500 | St. | 20,35 € | | 2.500 | St. | 100,56 € | | | |
| 3041-243 | 5 x 45 PZ2 | | | | | | | 200 | St. | 9,83 € | | 1.000 | St. | 48,43 € | | | |
| 3041-117 | 5 x 45 PZ2 | | | | | | | 500 | St. | 25,64 € | | 2.500 | St. | 126,14 € | | | |
| 3041-245 | 5 x 50 PZ2 | | | | | | | 200 | St. | 12,76 € | | 1.000 | St. | 62,47 € | | | |
| 3041-119 | 5 x 50 PZ2 | | | | | | | 500 | St. | 29,04 € | | 2.500 | St. | 140,42 € | | | |
| 3041-247 | 5 x 60 PZ2 | | | | | | | 100 | St. | 6,62 € | | 500 | St. | 32,61 € | | | |
| 3041-121 | 5 x 60 PZ2 | | | | | | | 500 | St. | 33,86 € | | 2.500 | St. | 166,60 € | | | |
| 3041-249 | 5 x 70 PZ2 * | | | | | | | 100 | St. | 10,36 € | | 500 | St. | 50,87 € | | | |
| 3041-123 | 5 x 70 PZ2 * | | | | | | | 200 | St. | 16,71 € | | 1.000 | St. | 82,35 € | | | |
| 3041-251 | 5 x 80 PZ2 * | | | | | | | 100 | St. | 13,21 € | | 500 | St. | 63,43 € | | | |
| 3041-125 | 5 x 80 PZ2 * | | | | | | | 200 | St. | 19,09 € | | 1.000 | St. | 94,01 € | | | |
| 3041-127 | 5 x 90 PZ2 | | | | | | | 200 | St. | 24,89 € | | 1.000 | St. | 122,57 € | | | |
| 3041-253 | 5 x 100 PZ2 | | | | | | | 100 | St. | 18,48 € | | 500 | St. | 90,32 € | | | |
| 3041-129 | 5 x 100 PZ2 | | | | | | | 200 | St. | 27,11 € | | 1.000 | St. | 133,52 € | | | |
| 3041-131 | 5 x 110 PZ2 | | | | | | | 200 | St. | 47,98 € | | 1.000 | St. | 236,45 € | | | |
| 3041-133 | 5 x 120 PZ2 | | | | | | | 200 | St. | 54,81 € | | 1.000 | St. | 270,13 € | | | |
| 3041-135 | 6 x 30 PZ3 | | | | | | | 500 | St. | 36,35 € | | 2.500 | St. | 179,09 € | | | |
| 3041-137 | 6 x 35 PZ3 | | | | | | | 500 | St. | 36,53 € | | 2.500 | St. | 178,50 € | | | |
| 3041-255 | 6 x 40 PZ3 | | | | | | | 200 | St. | 13,49 € | | 1.000 | St. | 66,52 € | | | |
| 3041-139 | 6 x 40 PZ3 | | | | | | | 500 | St. | 34,45 € | | 2.500 | St. | 169,57 € | | | |
| 3041-257 | 6 x 50 PZ3 | | | | | | | 100 | St. | 9,28 € | | 500 | St. | 44,39 € | | | |
| 3041-141 | 6 x 50 PZ3 | | | | | | | 200 | St. | 14,26 € | | 1.000 | St. | 70,21 € | | | |
| 3041-259 | 6 x 60 PZ3 | | | | | | | 100 | St. | 9,06 € | | 500 | St. | 44,68 € | | | |
| 3041-143 | 6 x 60 PZ3 | | | | | | | 200 | St. | 16,59 € | | 1.000 | St. | 81,75 € | | | |
| 3041-261 | 6 x 70 PZ3 * | | | | | | | 100 | St. | 11,31 € | | 500 | St. | 55,63 € | | | |
| 3041-145 | 6 x 70 PZ3 * | | | | | | | 200 | St. | 20,63 € | | 1.000 | St. | 101,63 € | | | |
| 3041-263 | 6 x 80 PZ3 * | | | | | | | 100 | St. | 12,70 € | | 500 | St. | 62,53 € | | | |
| 3041-147 | 6 x 80 PZ3 * | | | | | | | 200 | St. | 22,92 € | | 1.000 | St. | 112,93 € | | | |
| 3041-149 | 6 x 90 PZ3 | | | | | | | 200 | St. | 26,13 € | | 1.000 | St. | 128,64 € | | | |
| 3041-151 | 6 x 100 PZ3 | | | | | | | 100 | St. | 17,34 € | | 500 | St. | 84,13 € | | | |
| 3041-153 | 6 x 120 PZ3 | | | | | | | 100 | St. | 22,66 € | | 500 | St. | 111,62 € | | | |
| 3041-155 | 6 x 140 PZ3 | | | | | | | 100 | St. | 29,46 € | | 500 | St. | 145,12 € | | | |
| 3041-157 | 6 x 160 PZ3 | | | | | | | 100 | St. | 38,87 € | | 500 | St. | 191,47 € | | | |
