SPAX Universalschrauben, Senkkopf, Vollgewinde mit 4CUT-Spitze, Pozidriv (PZ) , normale Spitze unter Durchmesser 3,5 mm
Artikelgruppe 3047
ROSTFREI A2
ROHS-Konform: Ja
REACH-Konform: Ja
Art. 82084
Alternativen
Produktinformationen
Kopfform
Senkkopf
Antrieb
Kreuzschlitz (PZ)
Gewindeform
Holzgewinde
Zulassung
SKH (alle)ETA-12/0114;MPA;SKH (einzeln)ETA-12/0114;MPA;SKH (einzeln)
"Standard" rostfreier Stahl, bedingt säurebeständig (idR Festigkeitsklasse 70)
Korrosionsbes.
relativ hoch
Optik
metallisch matt, silbrig bis grau
| Lade... |

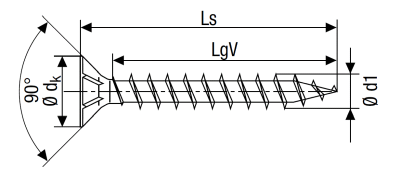

Legende:
Antrieb-PZ
= Antrieb-Pozidriv-Kreuzschlitz (PZ)
Maße (d1)
= Durchmesser Gewinde (Nennmaß)
*
= Abweichung: Gewinde geht nicht ganz bis zum Kopf
| Maße (d1) |
2,5 |
3 |
3,5 |
4 |
4,5 |
5 |
6 |
| dk |
5,1 |
6,0 |
7,0 |
8,0 |
8,8 |
9,7 |
11,6 |
| Antrieb-PZ |
PZ 1 |
PZ 1 |
PZ 2 |
PZ 2 |
PZ 2 |
PZ 2 |
PZ 3 |
Angaben in mm, soweit nicht anders angegeben, alle Angaben ohne Gewähr
| Lade... |
|
Artikel-Nr.
|
Abmessung
|
Menge
|
Kleinpaket
|
Standardpaket
|
Großpaket
|
|
|
|
| 3047-321 | 3 x 12 PZ1 | | | | | |  | 200 | St. | 5,55 € | | 1.000 | St. | 27,37 € |  |  |  |
| 3047-323 | 3 x 16 PZ1 | | | | | | | 200 | St. | 5,90 € | | 1.000 | St. | 29,04 € | | | |
| 3047-325 | 3 x 20 PZ1 | | | | | | | 200 | St. | 6,78 € | | 1.000 | St. | 33,44 € | | | |
| 3047-327 | 3 x 25 PZ1 | | | | | | | 200 | St. | 5,93 € | | 1.000 | St. | 29,16 € | | | |
| 3047-329 | 3 x 30 PZ1 | | | | | | | 200 | St. | 7,26 € | | 1.000 | St. | 35,82 € | | | |
| 3047-331 | 3 x 40 PZ1 | | | | | | | 200 | St. | 12,02 € |  | 1.000 | St. | 59,26 € | | | |
| 3047-333 | 3,5 x 16 PZ2 | | | | | | | 200 | St. | 7,97 € | | 1.000 | St. | 37,84 € | | | |
| 3047-335 | 3,5 x 20 PZ2 | | | | | | | 200 | St. | 7,43 € | | 1.000 | St. | 36,65 € | | | |
| 3047-337 | 3,5 x 25 PZ2 | | | | | | | 200 | St. | 7,81 € | | 1.000 | St. | 38,56 € | | | |
| 3047-339 | 3,5 x 30 PZ2 | | | | | | | 200 | St. | 8,12 € | | 1.000 | St. | 39,98 € | | | |
| 3047-341 | 3,5 x 35 PZ2 | | | | | | | 200 | St. | 8,95 € | | 1.000 | St. | 44,03 € | | | |
| 3047-343 | 3,5 x 40 PZ2 | | | | | | | 200 | St. | 9,35 € | | 1.000 | St. | 46,05 € | | | |
| 3047-345 | 4 x 20 PZ2 | | | | | | | 200 | St. | 8,64 € | | 1.000 | St. | 42,60 € | | | |
| 3047-347 | 4 x 25 PZ2 | | | | | | | 200 | St. | 9,59 € | | 1.000 | St. | 47,24 € | | | |
| 3047-349 | 4 x 30 PZ2 | | | | | | | 200 | St. | 10,59 € | | 1.000 | St. | 52,12 € | | | |
| 3047-351 | 4 x 35 PZ2 | | | | | | | 200 | St. | 11,28 € | | 1.000 | St. | 55,57 € | | | |
| 3047-353 | 4 x 40 PZ2 | | | | | | | 200 | St. | 11,88 € | | 1.000 | St. | 58,55 € | | | |
| 3047-355 | 4 x 45 PZ2 | | | | | | | 200 | St. | 12,40 € | | 1.000 | St. | 61,17 € | | | |
| 3047-357 | 4 x 50 PZ2 | | | | | | | 200 | St. | 12,97 € | | 1.000 | St. | 64,02 € | | | |
| 3047-359 | 4 x 60 PZ2 * | | | | | | | 100 | St. | 9,41 € | | 500 | St. | 46,35 € | | | |
| 3047-361 | 4,5 x 25 PZ2 | | | | | | | 200 | St. | 11,28 € | | 1.000 | St. | 55,57 € | | | |
| 3047-363 | 4,5 x 30 PZ2 | | | | | | | 200 | St. | 11,21 € | | 1.000 | St. | 55,22 € | | | |
| 3047-365 | 4,5 x 35 PZ2 | | | | | | | 200 | St. | 13,26 € | | 1.000 | St. | 65,33 € | | | |
| 3047-367 | 4,5 x 40 PZ2 | | | | | | | 200 | St. | 14,38 € | | 1.000 | St. | 70,92 € | | | |
| 3047-369 | 4,5 x 45 PZ2 | | | | | | | 200 | St. | 15,83 € | | 1.000 | St. | 78,06 € | | | |
| 3047-371 | 4,5 x 50 PZ2 | | | | | | | 200 | St. | 17,16 € | | 1.000 | St. | 84,61 € | | | |
| 3047-373 | 4,5 x 60 PZ2 | | | | | | | 100 | St. | 11,39 € | | 500 | St. | 56,11 € | | | |
| 3047-375 | 4,5 x 70 PZ2 * | | | | | | | 100 | St. | 11,35 € | | 500 | St. | 55,99 € | | | |
| 3047-377 | 5 x 30 PZ2 | | | | | | | 200 | St. | 13,54 € | | 1.000 | St. | 66,76 € | | | |
| 3047-379 | 5 x 35 PZ2 | | | | | | | 200 | St. | 14,95 € | | 1.000 | St. | 73,66 € | | | |
| 3047-381 | 5 x 40 PZ2 | | | | | | | 200 | St. | 16,68 € | | 1.000 | St. | 82,23 € | | | |
| 3047-383 | 5 x 45 PZ2 | | | | | | | 200 | St. | 19,28 € | | 1.000 | St. | 95,08 € | | | |
| 3047-385 | 5 x 50 PZ2 | | | | | | | 200 | St. | 21,11 € | | 1.000 | St. | 104,01 € | | | |
| 3047-387 | 5 x 60 PZ2 | | | | | | | 100 | St. | 13,10 € | | 500 | St. | 64,50 € | | | |
| 3047-389 | 5 x 70 PZ2 * | | | | | | | 100 | St. | 18,17 € | | 500 | St. | 89,55 € | | | |
| 3047-391 | 5 x 80 PZ2 * | | | | | | | 100 | St. | 22,31 € | | 500 | St. | 109,96 € | | | |
| 3047-407 | 5 x 100 PZ2 | | | | | | | 200 | St. | 62,19 € | | 1.000 | St. | 306,43 € | | | |
| 3047-393 | 6 x 40 PZ3 | | | | | | | 200 | St. | 33,77 € | | 1.000 | St. | 166,48 € | | | |
| 3047-395 | 6 x 50 PZ3 | | | | | | | 100 | St. | 18,21 € | | 500 | St. | 89,73 € | | | |
| 3047-397 | 6 x 60 PZ3 | | | | | | | 100 | St. | 22,29 € | | 500 | St. | 109,78 € | | | |
| 3047-399 | 6 x 70 PZ3 * | | | | | | | 100 | St. | 22,85 € | | 500 | St. | 112,57 € | | | |
| 3047-401 | 6 x 80 PZ3 * | | | | | | | 100 | St. | 22,99 € | | 500 | St. | 113,29 € | | | |
| 3047-403 | 6 x 90 PZ3 | | | | | | | 100 | St. | 25,31 € | | 500 | St. | 124,71 € | | | |
| 3047-405 | 6 x 100 PZ3 | | | | | | | 100 | St. | 28,42 € | | 500 | St. | 140,00 € | | | |
